Force Gauges & Ergonomics Kits

Mark-10 Force Gauges can be used in a virtually limitless number of tension and compression testing applications. All Force Gauges are able to capture the peak force in both tension and compression and have selectable units of measurement. Capacities are available from 50 g full scale to 1,000 lb, the broadest range in the industry. Mark-10 Force Gauges may be handheld or used with a test stand and gripping fixtures to create a complete testing solution.

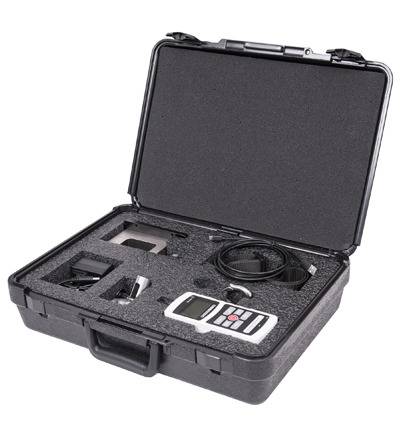

The Series E Force Gauges make job task analysis and ergonomics analysis simple and accurate, ideal for workplace design, strength assessment and ergonomic studies. The series E offers professionals and ergonomists with an economical solution to perform tests within the specified force ranges alongside a wide range of attachments for various applications.

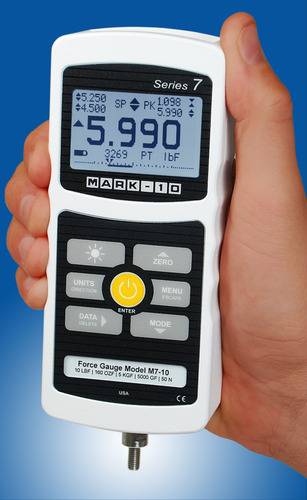

Series 7 professional Digital Force Gauges are designed with a number of sophisticated features for the most demanding tension and compression measurement applications, up to 500 lbf (2500 N). The Force Gauges feature ±0.1% accuracy and a blazingly fast, industry-leading sampling rate of 14,000 Hz, producing reliable results for extremely quick-action tests.

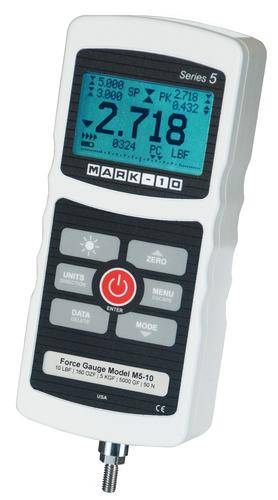

Series 5 Advanced  Force Gauges feature and industry-leading sampling rate of 7,000 Hz and 0.1% accuracy, production reliable, accurate results even in quick-action testing. Additional advanced features such as averaging mode, external trigger mode, pass word protection, and data memory for 1,000 readings make this flexible Force Gauge series ideal for a wide range of applications.

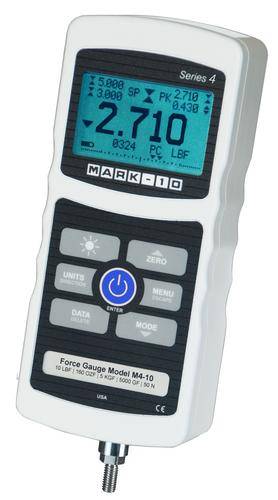

Series 4 Performance Force Gauges feature a sampling rate of 3,000  Hz and +/-0.2% accuracy, producing reliable, accurate results in a wide range of applications. Set point indicators with outputs are ideal for pass/fail testing, while an analog load bar provides graphical representation of applied load. Data memory for 50 readings is also provided, along with data output capability via USB, RS-232, Mitutoyo analog output, AC Adapter charger and carrying case.

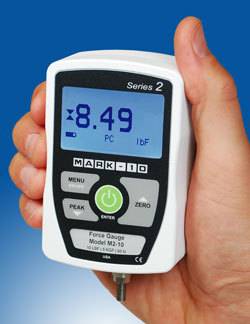

Series 2 Economical Digital Force Gauges are designed for basic tension and compression force testing applications up to 100 lbf (500N). Tension and compression readings are reliably captured via the gauge, ± 0.5% accuracy and 500 Hz sampling rate.
