Medical and Pharmaceutical

Medical devices and pharmaceutical products must conform to numerous industry and internally developed standards to ensure proper functioning and patient safety. To assess their performance and quality force and torque measurement products can be critical. From measuring syringe activation force to pill crush force to suture strength.

EXAMPLES:

►Tensile Strength of Orthodontic Wire, ►Stopcock Torque, ►Dental and Bone Screw Torque, ►Needle Penetration Force, ►Tablet Crush Force, ►Suture Strength, ►Packaging Peel Force, ►Syringe Plunger Force, ►Tubing Connector Pull-Force, ►Catheter Torque, ►Luer Lock Torque, ►Adhesive Strength of Bandages.

The ESM1500 and ESM 750 are highly configurable single-column force testers for tension and compression measurement applications with capacities of 1,500lbf (6.7kN) and 750lbf (3.4kN).Suitable for laboratory and production environments apart from break testing, cycling, limit testing to a load or distance, loadholding, elongation testing, tensile testing, compression testing, and more. The available FollowMe® facilitates crosshead positioning for sample setup. Hand guided push/pull on the load moves the crosshead at a dynamically variable speed. The stands feature a unique modular controller function platform. Functions such as travel measurement, cycling, etc. are offered individually, accommodating a wide range of budgets and applications.Force and travel data can be output to a PC for graphic and analysis using MESUR™gauge software, or fully control the stand by PC through a custom-written program in any language supporting ASCll communications.
A Compact Tensile System with heated saline bath has been delivered to Biosense Webster, a Medical Equipment Manufacturer.
The ES05 to ES30 Manual Force Measurement Test Stands are Ideal for Low Force applications they are Versatile and Economical solution for most Compression and Tensile Testing Applications. It can accept a wide variety of sample shapes and sizes and can be configured in many positions due to modular design. Precision hand wheel operation enables the user to easily and accurately test up to 200 lbf 1000 N of force. Use with any Mark-10 Force Gauge and grips to create a complete testing solution.
The Series E Force Gauges make job task analysis and ergonomics analysis simple and accurate, ideal for workplace design, strength assessment and ergonomic studies. The series E offers professionals and ergonomists with an economical solution to perform tests within the specified force ranges alongside a wide range of attachments for various applications.
Series TT01 Torque Testers are designed to measure application and removal torque of bottel caps up to 100 lbFin (11.5 Nm)  Adjustable posts effectively grip a broad range of container shapes and sizes while optional flat and adjustable jaws are available for unique profiles. A rugged aluminum design, and simple  intuitive operation allow for use in laboratory and production environments.
The MR06-200 Wire Crimp Pull Sensor is a hand-operated solution for measuring Wire Crimp pull-off forces. The Ergonomic handles and convenient tensioning mechanism make field measurements a breeze for applications up to 200 lbf (1,000 N). Squeeze the handles together to increase tension on the sample until a break occurs. The peak force is recorded by the indicator. A rotating turret with slots of multiple sizes accommodates a wide range of wire diameters, up to 0.25 in. (6.4 mm).
PHR series are portable Rockwell Hardness Testers for the measurement of metal and plastic materials these Rockwell Hardness Testers are not only suitable to measure small parts, but also to measure large and fixed parts.

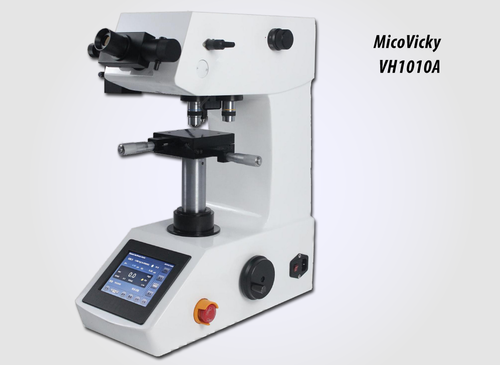

Micro Star Digital Micro Vickers Hardness Tester MicoVicky is affordable Micro Vickers Hardness Tester, has a color touch screen, auto hardness conversion to other scales. Depth and hardener layer can be automatically calculated and data can be viewed and printed via Bluetooth. Automatic loading, dwelling and unloading, simple operation no human operator error. The updated manual lifting system has no gap. Equipped with upgraded optical system that provides clear image of indentation and improved accuracy of the measurement.
