Mark-10 EKM5-200 Myometer Kit

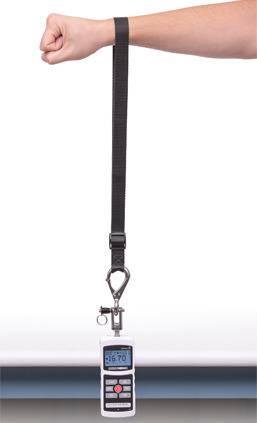

The new EKM5-200 Myometer Kit ,featuring a series 5 Mark-10 force gauge facilitates a wide range of strength assessments and ergonomic studies. The kit operates in the 200 lbf force range, comes with a tabletop mount,strap and accessories and hence is ideal for ergonomists or professionals. The force gauge measures real time, average, and peak pull and push forces.

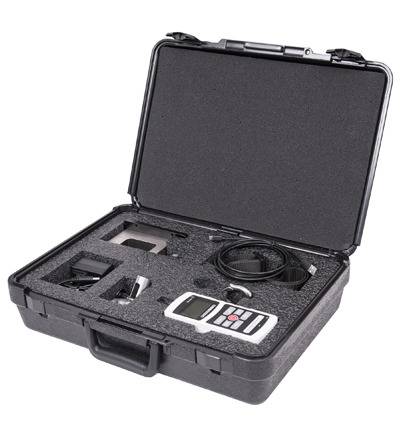

Kit Contents:

  •  M5-200 Advanced Force Gauge
  •  Tabletop mounting kit, for vertical or horizontal orientations
  •  Adjustable length looped strap
  •  Clevis and clasp hook attachments
  •  AC adapter/charger
  •  MESUR® Lite data collection software
  •  USB cable
  •  NIST-traceable certificate of calibration with data
  •     Carrying case

The force gauge also features high / low limit indicators, for pass / fail and minimum force testing.



Optional equipment:

MESUR gauge software - Tabulates and plots load vs. time or load vs. travel. Also calculates  statistics, exports to Excel, and more.



KIT PART NO: 25-23-70





Force Gauge Features & Specifications
Force Capacity200 lbf
Accuracy+/- 0.1% full scale
Sampling Rate7000 Hz
OutputUSB, RS-232, Analog
MESUR Lite SoftwareIncluded
Measurement Unitslbf,ozf,kgf,N,kN
Force Resolution
lbfozfkgfNkN
200 x 0.53200 x 1100 x 0.021000 x 0.21 x 0.0002
