Adhesives

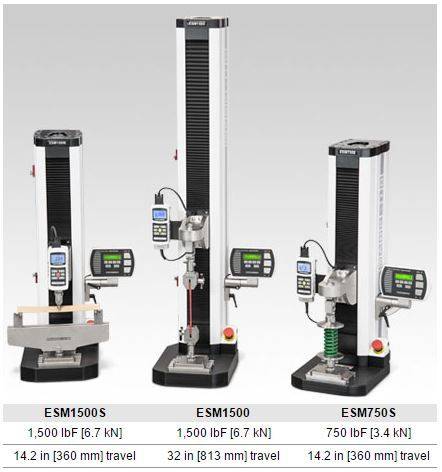

The ESM1500 and ESM 750 are highly configurable single-column force testers for tension and compression measurement applications with capacities of 1,500lbf (6.7kN) and 750lbf (3.4kN).Suitable for laboratory and production environments apart from break testing, cycling, limit testing to a load or distance, loadholding, elongation testing, tensile testing, compression testing, and more. The available FollowMe® facilitates crosshead positioning for sample setup. Hand guided push/pull on the load moves the crosshead at a dynamically variable speed. The stands feature a unique modular controller function platform. Functions such as travel measurement, cycling, etc. are offered individually, accommodating a wide range of budgets and applications.Force and travel data can be output to a PC for graphic and analysis using MESUR™gauge software, or fully control the stand by PC through a custom-written program in any language supporting ASCll communications.

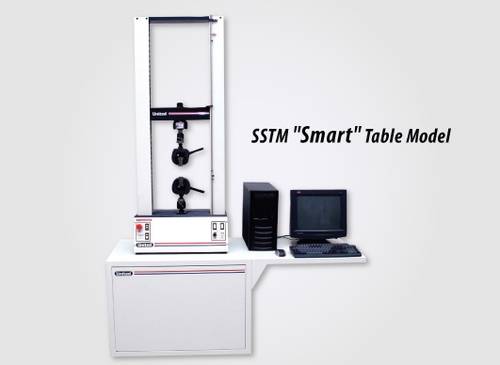

United Electro-Mechanical Universal SSTM Testing Machine, table model is affordable, ultra-accurate, Single-column Materials Universal Testing Machine for those low capacity testing needs. The United Electro-Mechanical Universal SSTM will conduct tests in tension and or compression (universal). Ideal for use in most testing situations including test labs, R&D applications, quality control and production testing. United 'SMART' Testing Machines meet the requirements of ASTM E-8, and ASTM E-83.
The DSTM system comprises of an SSTM machine, a United load cell, and the Datum 5i operation software.
United Electro-Mechanical Universal Testing Machines Table Models are available in three standard load frame capacities: STM-30 with a capacity of 30 kN 6,750 lbf, STM-50 with a capacity of 50 kN 11,250 lbf, STM-100 KN with a capacity of 100 kN 22,500 lbf.

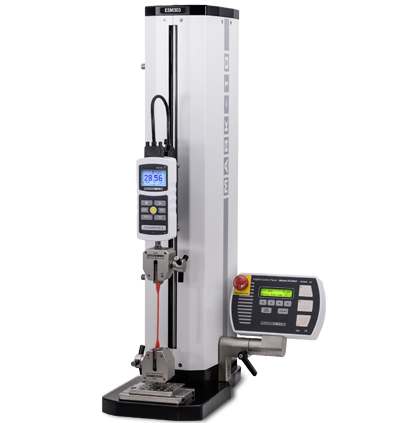

The ESM 303 Motorized Force Measurement Test Stands are a versatile and precise testing solution for most tension and compression testing applications up to 300 lbf. (1.5 kN) for laboratory and production environments. The Test Stands can perform a wide variety of tests, including break testing, cycling, limit testing to a load distance and more. Speed is adjustable in up and down directions and a remote control unit provides added safety during testing. Other features include a manual fine adjustment knob and a stepper motor that prevents speed variation with load, making testing precise and repeatable. Use this Test Stand with any Mark-10 Force Gauge and grips to create a complete testing solution.
United SFM Smart Electro-Mechanical Universal Floor Models are the logical choice when maximum crosshead travel and load frame capacity are required. The United SFM Models SFM Universal Testing Machines offer a choice of five standard load frame capacities ranging from 1,000 lbf (4.45 kN) to 135,000 lbf (600 kN).Testing can be done in tension and/or compression. United 'SMART' Testing Machines meet the requirements of ASTM E-8, ASTM E-9 and ASTM E-83.

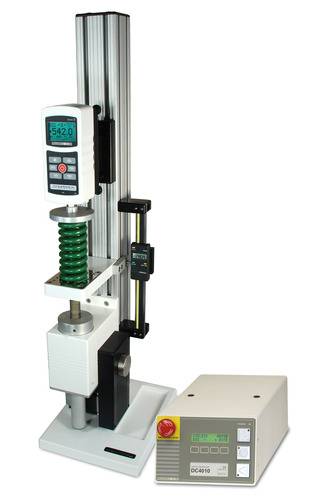

The TSFM-DC is a Motorized Force Test Stand designed for tension and compression testing of springs, packaging, metals, fabrics and other items requiring up to 500 lbf (2,200 N) of force. Generous clearance and throat depth accommodate a broad range of sample shapes and sizes. The durable and rigid column minimizes bend, making it particularly well suited for spring testing. Use this Test Stand with any Mark-10 Force Gauge and grips to create your complete testing solution.

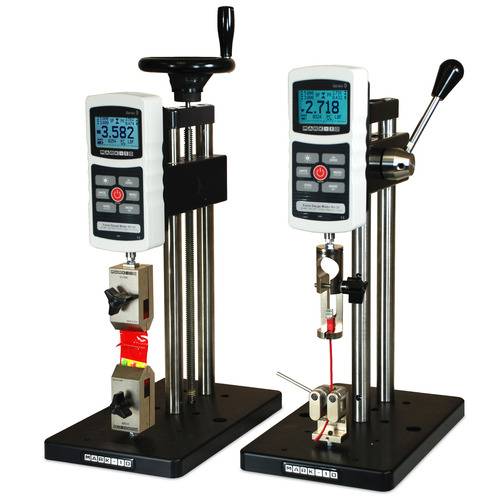

The ES05 to ES30 Manual Force Measurement Test Stands are Ideal for Low Force applications they are Versatile and Economical solution for most Compression and Tensile Testing Applications. It can accept a wide variety of sample shapes and sizes and can be configured in many positions due to modular design. Precision hand wheel operation enables the user to easily and accurately test up to 200 lbf 1000 N of force. Use with any Mark-10 Force Gauge and grips to create a complete testing solution.
