HomeOur ProductsWire Crimp Pull Testers
Wire Crimp Pull Testers

The WT3-201M motorizes Wire Crimp Pull Tester is designed to measure the pull-force of up to 200 lbf (1 kN) for wire and tube terminations. The Tester accommodates wire sizes up to AWG 3 (0.25 in (6.3 mm) OD, or custom sizes via the available machine able blank fixture. Auto-start automatically begins the test when the wire sample has been loaded. When the sample breaks, the tester can auto-reverse, output the break force, store the peak force, and zero the display automatically, thereby increasing testing through output. Further testing efficiency is achieved via the available Profiles function, through which multiple test setups may be saved and recalled as required.

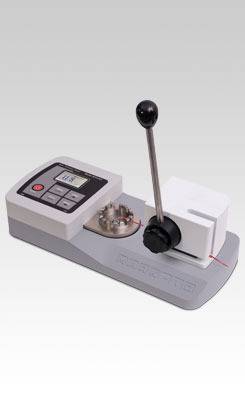

The WT3-201 Wire Crimp Pull Tester is designed to measure the pull-off force of crimped wire and tube terminations. An ergonomic lever allows for easy application of up to 200 lbF (1,000 N) of crimp pull force. Adjustable wire terminal grip contains multiple slots for wire diameters up to AWG 3 (0.25 in [6.3 mm]).

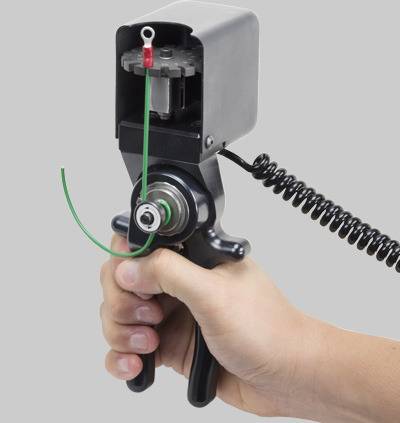

The MR06-200 Wire Crimp Pull Sensor is a hand-operated solution for measuring Wire Crimp pull-off forces. The Ergonomic handles and convenient tensioning mechanism make field measurements a breeze for applications up to 200 lbf (1,000 N). Squeeze the handles together to increase tension on the sample until a break occurs. The peak force is recorded by the indicator. A rotating turret with slots of multiple sizes accommodates a wide range of wire diameters, up to 0.25 in. (6.4 mm).
