HomeOur ProductsPortable Hardness TestersPHR-16 Portable Chain Rockwell Hardness Tester

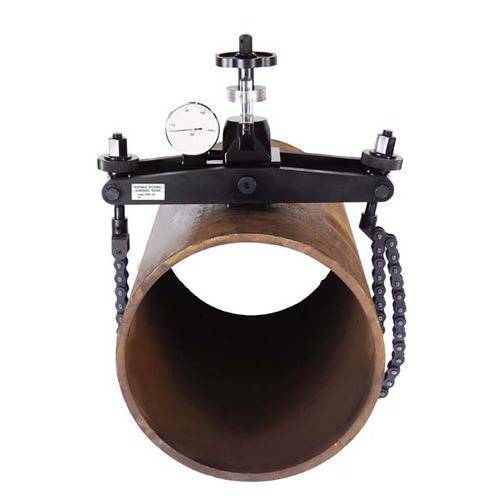

PHR-16 Portable Chain Rockwell Hardness Tester

PHR series are portable Rockwell Hardness Testers for the measurement of metal and plastic materials these Rockwell Hardness Testers are not only suitable to measure small parts, but also to measure large and fixed parts.

Features: Small, portable, accurate, weight only 4.8kg, can be easily operated like a micrometer. This rockwell tester can be adopted for testing of fine, long, small and irregular parts instead of the bench Hardness Tester.

►Preliminary Test Force: 10kgf (98.07N)

►Test Force: 60kgf (558.4N), 100kgf (980.7N), 150kgf (1471.3N)

►Net weight: 4.8kg.

►15 Regular Hardness Scales: HRC,HRB,HRA,HV,HB,HS etc.

►Clearance: 200 x 450mm

►Resolution: 0.5HR.

►Conforms to ASTM Standards and ISO 6508 Metals.









Standard Delivery:
Item:
120 deg. Cone Diamond Indenter
1.588mm Ball Indenter
V-Shaped Anvil
Flat Anvil
Rockwell Test Blocks
Magnifier
