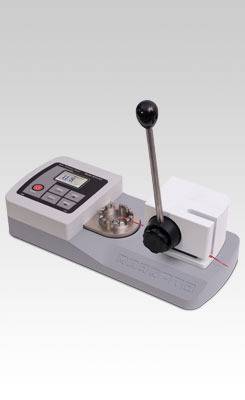

Wire Crimp Pull Tester Model WT3-201

The WT3-201 Wire Crimp Pull Tester is designed to measure the pull-off force of crimped wire and tube terminations. An ergonomic lever allows for easy application of up to 200 lbF (1,000 N) of crimp pull force. Adjustable wire terminal grip contains multiple slots for wire diameters up to AWG 3 (0.25 in [6.3 mm]).

A large, backlite graphic LCD displays easy-to-read values, including real-time force, peak force, programmable pass/fail limits, units of measurement, and more. Data can be transferred to a PC or other data collector via USB, RS-232, Mitutoyo (Digimatic), or analog outputs. An analog load bar is shown on the display for graphical representation of applied force.

On-board data storage for up to 1,000 readings is included, as are statistical calculations and output to a PC. Unique automatic output / data storage / zeroing upon sample break helps automate testing processes.

An optional ring terminal fixture may be used to secure ring terminations, and an optional carrying case makes transportation simple and safe.

Specifications:
Capacity x Resolution:200 x 0.1 lbf, 3200 x 2 ozf, 100 x 0.05 kgf, 1000 x 0.5 N, 1 x 0.0005 kN
Accuracy:+/-0.2% of full scale
Wire gauge range:AWG30 - AWG3
Wire diameter range:0.01 - 0.25 in (0.3 - 6.3 mm)
Minimum sample range:6.5 in (165mm), excluding termination
Maximum sample elongation:1.15 in (29.2 mm)
Power:AC or rechargeable battery
Battery life:Up to 7 hours continuous use
Sample rate:7,000 Hz
Outputs:USB / RS-232
Safe overload:150% of full scale
Ordering Information:
WT3-201Wire Crimp Pull TesterManualNo.: 25-36-00
WT3002FixtureRing terminal No.: 25-36-02
WT3003FixtureMachinableNo.: 25-36-03
AC1049Calibration kit(weights not included)No.: 25-36-04
WT3004Carrying Casefor WT-201No.: 25-36-05
