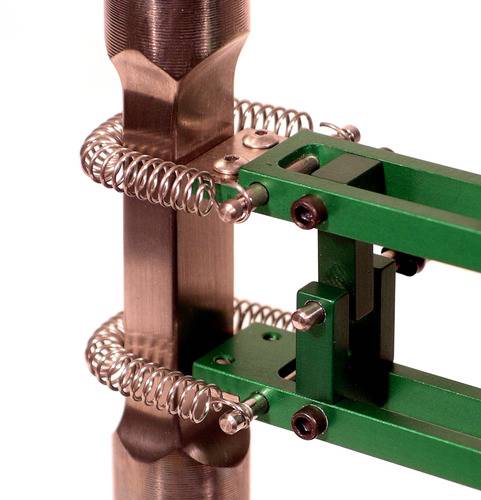

Axial Extensometer Rubber Spring Option

Series 3542 General purpose Extensometer for axial tensile, compression and cycle testing. Gage lengths from 0.5 to 2 inches (and 10 to 50mm) and measuring ranges from 5% to 100% strain.

These Extensometers are designed for testing a wide range of materials, including metals, plastics, composites and ceramics. All models can measure in both tension and compression. The dual flexure design makes them very rugged in insensitive to vibrations, which permits higher frequency operation. Spring attachment is included.

Features: Full bridge, 350 ohm strain gaged for compatibility with nearly any test system. High and low temperature options extend operation from as low as -265ºC(-450F) 70 +175º C (350F) Meets ASTM E-83 class B-1 and ISO 9513 class 0.5 requirements for accuracy. Measuring range: 0.075 inches or 2 mm (specify).
