From component manufacturers to aircraft assemblers to airlines and militaries, force and torque measurement is critical in ensuring passenger safety and aircraft performance. Whether conforming to international or internally developed standards suppliers to the aerospace industry rely upon applications and products as diverse as tensile testing, wire crimp testing, spring testing, fastener torque testing and many others.
EXAMPLES:
►Testing of Composites, ►Tensile Strength of Materials, ►Passenger Control Button Activation Force, ►Spring Testing, ►Wire Terminal Crimp Pull Testing. ►Force and Torque Testing of Dials and Switches, ►Spring Testing, ►Bearing Torque Testing, ►Cable Tension Testing, ►Bend Strength of Materials, ►Electronics Component Pull-Of Testing, ►Seatbelt Release Force.
|
|
|
| |
The DSTM system comprises of an SSTM machine, a United load cell, and the Datum 5i operation software.
|
|
|
| | |
United High Capacity Smart Universal Hydraulic Floor Model DFM tension and compression testing machines with computer control are available with capacities from 300 kN (67,500 lbf) to 2,000 kN (450,000 lbf). Available with extended columns. United 'SMART' Testing Machines meet the requirements of ASTM E-8, ASTM E-9 and ASTM E-83.
|
|
|
| | |
Two words best describe the benefits afforded by United\'s multi-station testing systems: HIGH PRODUCTIVITY. Test up to six samples at once for the cost of about two stand-alone units.
|
|
|
| | |
Vickers method is based on an optical measurement system, it specifies a range of light loads using a diamond.
|
|
|
| | |
United's Load Cells are designed to precisely measure the amount of force (load) applied to the specimen being tested. Available in single or dual bridge, United load cells offer the flexibility of using two readouts simultaneously, if desired. Constructed to meet ASTM E-4 requirements.
|
|
|
| | |
United SFM Smart Electro-Mechanical Universal Floor Models are the logical choice when maximum crosshead travel and load frame capacity are required. The United SFM Models SFM Universal Testing Machines offer a choice of five standard load frame capacities ranging from 1,000 lbf (4.45 kN) to 135,000 lbf (600 kN).Testing can be done in tension and/or compression. United 'SMART' Testing Machines meet the requirements of ASTM E-8, ASTM E-9 and ASTM E-83.
|
|
|
| | |
Servo-Controlled Hydraulic Floor Model 2000 kN (450,000 lbf). United SHFM 1000 and SHFM 2000 kN Hydraulic Testing Machines have four columns and test in Tension or Compression (Universal). The SHFM Hydraulic testing systems are fully accessorized and include the following at no additional cost: Hydraulic Grips with inserts for both flat flat and round test specimens, Flex Fixture and Compression Plates. United 'SMART' Testing Machines meet the requirements of ASTM E-8, ASTM E-9 and ASTM E-83.
|
|
|
| | |
The United Digital Speedy Tester Model LCH-10 - 50 kN, LCH-20 - 100kN, LCH-30 - 150kN and LCH-60 - 300 kN are hydraulic testing machines incorporating a highly accurate, built-in digital information system for the display of test data. Designed to perform a variety of tests, the versatile, easy-to-use Speedy Tester can be fitted with various types of grips and fixtures to accommodate a wide range of materials and applications. The Speedy is a Tension Tester, outfitted with a compression cage it can also perform compression tests.
|
|
|
| | |
The TSFM-DC is a Motorized Force Test Stand designed for tension and compression testing of springs, packaging, metals, fabrics and other items requiring up to 500 lbf (2,200 N) of force. Generous clearance and throat depth accommodate a broad range of sample shapes and sizes. The durable and rigid column minimizes bend, making it particularly well suited for spring testing. Use this Test Stand with any Mark-10 Force Gauge and grips to create your complete testing solution.
|
|
|
| | |
Series 7 professional Digital Force Gauges are designed with a number of sophisticated features for the most demanding tension and compression measurement applications, up to 500 lbf (2500 N). The Force Gauges feature ±0.1% accuracy and a blazingly fast, industry-leading sampling rate of 14,000 Hz, producing reliable results for extremely quick-action tests.
|
|
|
| | |
The United TRU-BLUE Rockwell Hardness Tester is computer controlled (closed loop) application of forces are via load cell measurement. The Tester has a 4 x 20 bright vacuum fluorescent display. Front panel controls with Piezo-Electric switches. Auto self-test and last test setup recall at startup. Removable parts clamp used to secure irregular shaped or oversize test specimens. Logical setup and operating menu from front panel keys. Throat depth is 5.5 inches. Optional 9.5 inch throat depth is available.
|
|
|
| | |
The WT3-201M motorizes Wire Crimp Pull Tester is designed to measure the pull-force of up to 200 lbf (1 kN) for wire and tube terminations. The Tester accommodates wire sizes up to AWG 3 (0.25 in (6.3 mm) OD, or custom sizes via the available machine able blank fixture. Auto-start automatically begins the test when the wire sample has been loaded. When the sample breaks, the tester can auto-reverse, output the break force, store the peak force, and zero the display automatically, thereby increasing testing through output. Further testing efficiency is achieved via the available Profiles function, through which multiple test setups may be saved and recalled as required.
|
|
|
| | |
MicroStar Digital SI-100 series Shore Durometers offer average computing power, integrated design, small volume, light weight and are easy to operate. Units give intuitive readings and have an automatic shutdown function. Use USB data output, RS-232 data output and "Bluetooth" data output option. Test Stand 360 mm (H).
|
|
|
| | |
The MicroStar Ultrasonic Portable Hardness Tester Model SU-300 is designed to test hardness of metals on flat, round, thin or large surfaces.
|
|
|
| | |

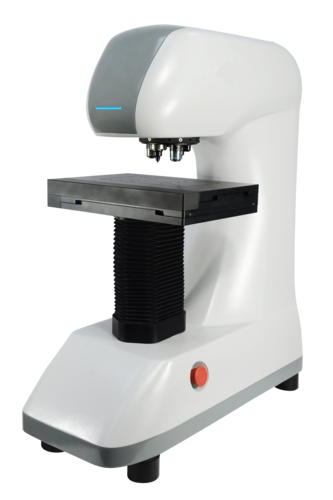

AutoVicky ZVK-1050AF series are fully automatic Micro & Macro Vickers and Knoop Hardness Tester with motorized X-Y stage, auto-focus system, auto-indentation and Twin Vickers / Knoop Indenters. Accuracy conforms to ASTM-E-92/E-384 and ISO 6507, 9385, 4545..
|
|
|
| | |
MicroStar Series MHV-1000Z/ MHV-1000ZK precision Micro Vickers & Knoop Hardness Machines with integrated technology of optics, mechanics and computations. Conforms to ASTM-E-92/-E384 and ISO 6507,9385, 4545.
|
|
|
| | |
Compressive Properties of Unidirectional or Crossply Fiber Resin Composites.
|
|
| | |
Accurate - Calculated to 1/2 of 1% of load. Can be used for higher loads up to 3,000 kg.
Versatile - Can be used in virtually any position.
Durable - Some King Portable Brinell testers have been working over 60 years.
Permanence - Impressions can be checked anytime.
|
|
|
| | |
MicroStar PHR series is an accurate and lightweight portable Hardness Tester designed for testing where limited clearance is available. This Rockwell Tester it is not only suitable for measuring small samples but also large parts and irregular parts can be adopted. The tester offsets the problem that the rebound hardness tester poses in accurate testing of small parts.
|
|
|
| | |
United STD-75-CF Compression Fixture (ASTM-D-3410).
|
|
|
| | |
The United Hammer Brinell Impact Hardness Tester PHB-1 is economical and easy to use. It applies force to the Indenter by the operator using a Hammer or Clamping Device. The force applied is controlled using a calibrated shear pin. When the load applied reaches the shear pin's limit, the shear pin breaks.
|
|
|
| | |
Scope of application, testing of hardness of small or thin samples and small areas of larger samples.
|
|
|
| | |
Micro Star HV-10 Series are semi Automatic smart Vickers Hardness Testing machines, that adopt the close-loop force sensor to replace are controlled the traditional quality weight. This innovative design makes the instrument more accurate. Selection of testing force and dwell time are controlled and monitored on the front panel automatic during process of loading, dwell and unloading.
|
|
|
| | |
Designed for materials and components testing the LFM-TOP Dual Column Table-Top Systems can be used over a range of force applications up to 125 kN.
The LFM-TOP test systems are supplied with two backlash-free ball screws and additional two guidance columns providing suitable load frame stiffness as required for table top design. The mobile crosshead is driven by a state-of-the-art brushless / maintenance free AC Servomotor providing high positioning accuracy and repeatability, faster starts and stops, best control, and highest accuracy at extremely low noise level.
|
|
|
| | |
LFM Electromechanical Floor Standing Machines up to 125 kN This Series offers ultra-high flexibility and modularity making this model the perfect platform for a wide spectrum of users and applications ranging from demanding research projects to high-volume quality control.
|
|
|
| |
| |
| | | |
