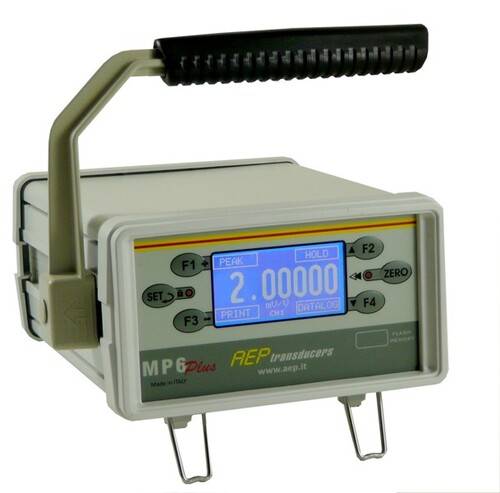

THE EVOLUTION OF THE SPECIES” : after more than 20 years of service in the various versions the new MP6Plus is born. MP6Plus is a Professional Digital Laboratory Indicator with 1, 2, 3, or 4 inputs, suitable for receiving signals from strain gauge sensors, transmitters with voltage or current output and PT100. Particularly suitable for both static and dynamic applications, for calibration and verification in metrology laboratories or industrial environments where it is necessary to make measurements of weight, force, pressure, torque, displacement and temperature in a synchronized manner. To FIT EVERY APPLICATION the instrument can be configured and customized: the function keys F1, F2, F3 and F4 can be programmed for the function of interest such as: PEAK, HOLD, RELEASE, TX DATA DATALOG, DISCHARGE, ZOOM. MP6Plus allows you to enable and disable each channel and using the ZOOM function it s possible to display only the channel of interest in full screen. The instrument works with a resolution of ±100.000 divisions and an accuracy better than 0.005% due to an internal 24-bit Sigma-Delta AD converter and a measurement control that is carried out for switching at a frequency equal to that of sampling: this system provides a better suppression of interference due to offset drift and to the connecting cables.

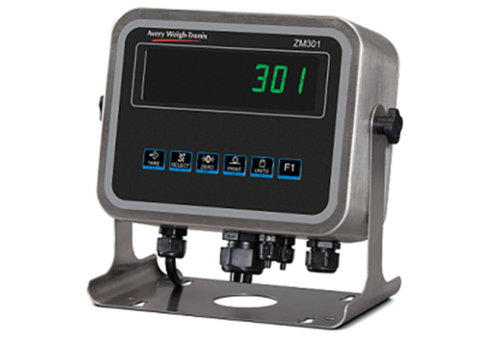

Hi-vis display to improve productivity - The ZM301 indicator features the latest technological advancement for highly visible displays. The high contrast, nine segment IBN display technology provides excellent color contrast and enhanced viewing angles, reducing operator error and improving productivity.

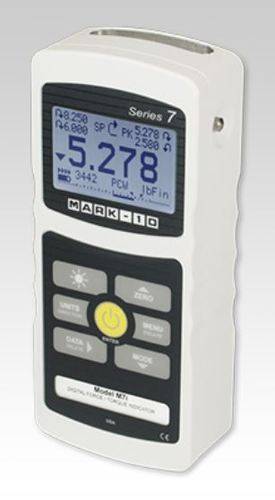

The 7i professional digital force / torque indicator is designed to work with a wide range of Mark-10 remote force and torque sensors. With exclusive Plug & Test™ technology, all calibration and configuration data is saved within the sensor’s smart connector, not the indicator, allowing for true interchangeability. In addition, all sensors are fully compatible with other Mark-10 indicators.

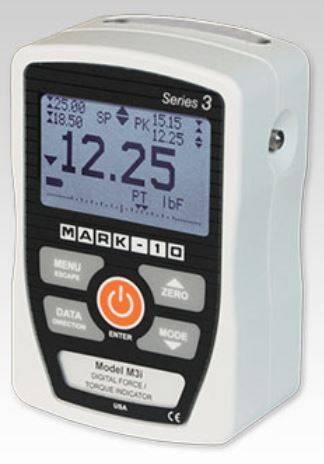

The 3i digital force / torque indicator is designed to work with a wide range of Mark-10 remote force and torque sensors. With exclusive Plug & Test™ technology, all calibration and configuration data is saved within the sensor’s smart connector, not the indicator, allowing for true interchangeability. In addition, all sensors are fully compatible with other Mark-10 indicators.

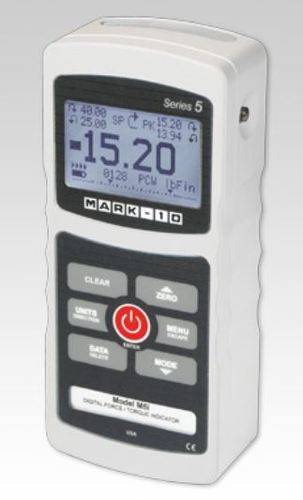

The 5i advanced digital force / torque indicator is designed to work with a wide range of Mark-10 remote force and torque sensors. With exclusive Plug & Test™ technology, all calibration and configuration data is saved within the sensor’s smart connector, not the indicator, allowing for true interchangeability. Sensor password protection prevents use of an unauthorized sensor. In addition, all sensors are fully compatible with the more basic 3i force / torque indicator.

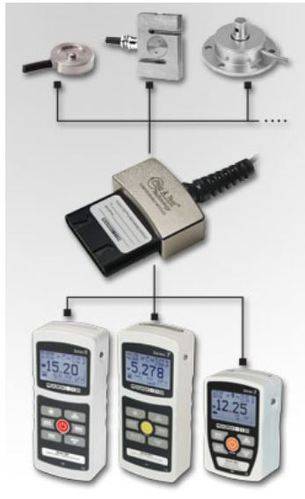

Sensor capacity and resolutions may be programmed via an included software utility, which includes a library of common force capacities from 0.12 to 750,000 lbf (0.5 N to 4,000 kN), and torque capacities from 10 ozfin to 40,000 lbfft (7 Ncm to 57,000 Nm). An identification number may be programmed, which is displayed upon indicator power-up or the indicator’s Information screen. Through Plug & Test technology, all configuration and calibration information is saved within the adapter. This flexibility allows for interchangeability between multiple sensors with any Mark-10 indicator.

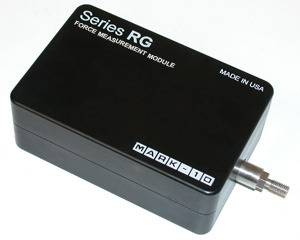

Series RG Smart Load Cells is a plug-and-play force measurement building block designed for integration within assembly systems, weighing systems and other process automation and testing automation applications. Accuracy ± 0.5% of full scale.
