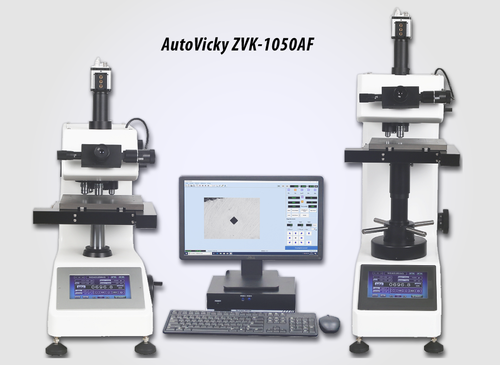

| Micro Vickers Hardness Tester AutoVicky ZVK-1050AF |
|
| |
|
|
 AutoVicky ZVK-1050AF series are fully automatic Micro & Macro Vickers and Knoop Hardness Tester with motorized X-Y stage, auto-focus system, auto-indentation and Twin Vickers / Knoop Indenters. Accuracy conforms to ASTM-E-92/E-384 and ISO 6507, 9385, 4545..
The fully automatic Hardness Tester AutoVicky ZVK-1050AF is equipped with auto-stage, Auto-focus, with high resolution optic system and 3A Software and PC system. 3A software can realize auto focus and auto hardness measurements if the indentation is larger than 8um. Auto Measurement Software 3A can control Hardness Tester and data communication, including Objectives and Indenter switching, auto loading, dwell and unloading, single or multiple indentations, set step distance, movement mode, auto record indentation dialog line and hardness value, auto generate CHD depth and hardness curve, error statistics, test times group statistics, generate Excel and Word format report.
The 3A Hardness Automation Software provides the user an efficient and fully automated environment to develop and execute tests that maximize the precision of the system with the minimum investment of time possible.
Test Loads: 10gf (98.07mN) 25gf (245.2mN) 50gf (490.3mN)100gf (980.7mN) 200gf (1961mN) 300gf (2942mN) 500gf (4903mN) 1000gf (9807mN)
United Testing Systems Canada Ltd. will ensure compliance with National Standards for all Hardness Testers sold, ESA Compliance and Certification.
Order No.: 95-69-00
Hardness Testers Accessories
| Specifications: | | | Loading Control: | Full auto loading dwell and unloading | | Auto Turret: | Indenter and positions controlled by 3A software | | Motorized Platform: | Precision programable X-Y Stage 100 x 100 mm | | Auto Measurement Software: | Machine control, CHD-Measurement, Route-plan function | | Magnification of Microscope: | Observation: 400x Objective 40x and Eyepiece 10x | | Magnification of Microscope: | Observation: 100x Objective 10x Eyepiece 10x | | Mix. Measuring unit: | 0.1my (0.01my for TS type) | | Max. Sample Height: | 90mm | | Instrument throat Depth: | 110mm | | Dwell Time: | Adjustable 5 - 99 seconds | | Hardness Scale | HV and HK | | X-Y Stage Motorized: | Dimensions 200 x 180mm X-Y travel Max. 100 x 100mm, Min. micro graduation 1um | | Light Source: | LED Illuminator | | Photographic Capability: | (Option) | | Dimensions: | W 190 x D 430 x H 520 mm | | Weight: | 80 Kg | | Power Supply: | AC 110-120 60HZ Single Phase |
| Standard Delivery: | Quantity: | | Main AutoVicky ZVK-1000F/ZVH50A | 2 | | Color touch screen control operating panel | 2 | | 10 x Digital Measuring Microscope | 2 | | Objective 10x,20x,40x (built-in) | 5 | | Indenter Vickers | 1 | | Indenter Macro | 1 | | Indenter Knoop | 1 | | Auto-stage: 100x100mm | 2 | | Power & electronic voltage power supply | 2 | | Leveling Legs | 8 | | Camera Adapter and camera System | 2 | | Standard Test Block (HV700, HV400) | 5 | | Dell Computer host and 21.5" LCD monitor Windows 10.05 | 1 | | Machine stage Vicky controller 200 | 1 | | Hardness testing Software and Operation manual | 1 | | Machine Cover | 2 | | Auxiliary Tools (Screwdriver: 1pc) | 1 | | Instruction and Maintenance Manual | 1 |
|
| | |
|
|
| | | |
