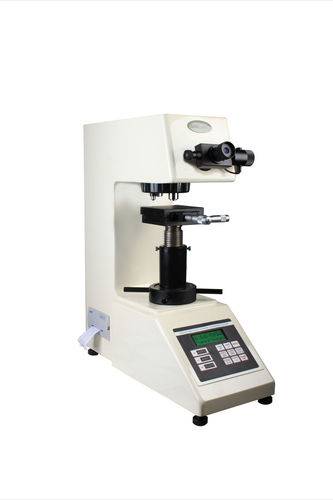

Micro Star HV-10 Series are semi Automatic smart Vickers Hardness Testing machines, that adopt the close-loop force sensor to replace are controlled the traditional quality weight. This innovative design makes the instrument more accurate. Selection of testing force and dwell time are controlled and monitored on the front panel automatic during process of loading, dwell and unloading.

conforms to ASTM-E-92/E-384 and ISO 6507.

Testing Range: 0.3kgf(2.94N) 0.5kgf(4.9N) 1kgf(9.8N) 2kgf(19.6N) 2.5kgf(24.5) 3kgf(29..4N) 5kgf(49.0N) 10kgf(98.0N)

Standard delivery: Vickers Indenter, 10x Objective, 40x Objective, 10x Digital Eyepiece, HV1 Hardness Test Block, HV10 Hardness Test Block, Analogue X-Y Anvil, Power Cable, Accessories Box, Anti-dust Cover and Level Screw

United Testing Systems Canada Limited will ensure compliance with National Standards for all Hardness Testers sold, ESA Compliance and Certification.

Power Requirements: 110V, 60Hz, One Phase.

Order no.: HV10: 30-08-02, HV30: 30 08 03, HV50: 30-08-04
