| United SFM Electro Mechanical Series Universal Testing Machine |
|
| |
|
|

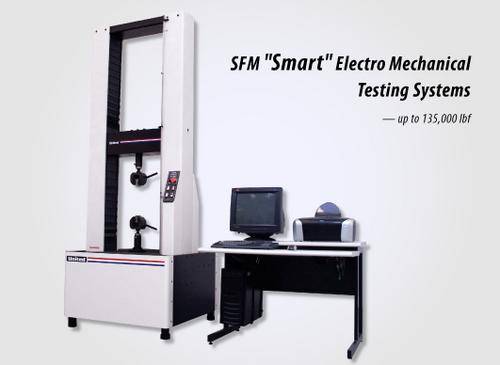

 United SFM Smart Electro-Mechanical Universal Floor Models are the logical choice when maximum crosshead travel and load frame capacity are required. The United SFM Models SFM Universal Testing Machines offer a choice of five standard load frame capacities ranging from 1,000 lbf (4.45 kN) to 135,000 lbf (600 kN).Testing can be done in tension and/or compression. United 'SMART' Testing Machines meet the requirements of ASTM E-8, ASTM E-9 and ASTM E-83.
United Testing Systems Canada Limited will ensure compliance with National and International Standards for all Tensile Testing Machines sold, ESA Compliance and Certification.
Power Requirements: 115/230V, 60Hz, 20A, Single Phase.
Testing Machines Accessories
Extensometers
Specifications
| MODEL | SFM-50KN | SFM-100KN | SFM-150KN | SFM-300KN | SFM-600KN | | Capacity: | 50kN/11,250lbf | 100kN/22,500lbf | 150kN/33,750lbf | 300kN/67,500lbf | 600kN/135,000lbf | | Full & Return Speeds: | in/min 20 | in/min 20 | in/min 20 | in/min 20 | in/min 20 | | Full & Return Speeds: | mm/min 508 | mm/min 508 | mm/min 508 | mm/min 508 | mm/min 508 | | Max. Force at full Speed Low Gear: | 11250lbf/50kN | 22500lbf/100kN | 33750lbf/150kN | 67500lbf/300kN | 121500lbf/540kN | | Max. Force at full Speed High Gear: | 11250lbf/50kN | 11250lbf/50kN | 11250lbf/50kN | 11250lbf/50kN | 11250lbf/50kN | | Minimum Speed: | in/min 0.0007 | in/min 0.0007 | in/min 0.0007 | in/min 0.0007 | in/min 0.0007 | | High Gear: | 11250lbf/50kN | 11250lbf/50kN | 11250lbf/50kN | 11250lbf/50kN | 11250lbf/50kN | | Clearance Between Columns: | 22in/560mm | 22in/560mm | 22in/560mm | 22in/560mm | 22in/560mm | | Total Crosshead Travel: | 60in/1525mm | 60in/1525mm | 60in/1525mm | 60in/1525mm | 60in/1525mm | | Frame Stiffness: | klbf/in 800 | klbf/in 800 | klbf/in 800 | klbf/in 1500 | klbf/in 1500 | | Frame Stiffness: | kN/mm 140 | kN/mm 140 | kN/mm 140 | kN/mm 260 | kN/mm 260 |
Approximate Dimensions and Weights
| MODEL | SFM-50KN | SFM-100KN | SFM-150KN | SFM-300KN | SFM-600KN | | Height: | 94in/2388mm | 94in/2388mm | 105in/2267mm | 105in/2267mm | 109in/2769mm | | Width: | 36in/914mm | 36in/914mm | 36in/914mm | 39in/991mm | 47in/1194mm | | Depth: | 27in/686mm | 27in/686mm | 27in/686mm | 42in/1067mm | 44in/1118mm | | Weight: | 950lbs/432kg | 950lbs/432kg | 950lbs/432kg | 1800lbs/818kg | 4750lbs/2160kg |
|
| | |
|
|
| | | |
