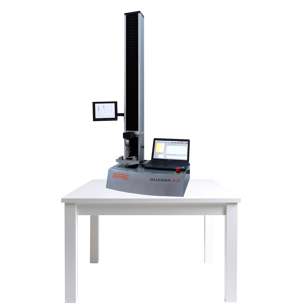

| UTSC Quasar 2.5 Universal Testing Machine |
|
| |
|
|
 United Testing Systems Canada Ltd. UTSC QUASAR 2.5kN Advanced Universal Testing Machine is the product of state-of-the-art design, built to the highest quality levels and has many advanced technical features.
Key technical advantages and benefits include extremely high resolution of load and stroke readings, as well as minimum test speed of 0.0005 mm/min for high performance and most accurate results.
The QUASAR frame can be equipped with various grips and fixtures, as well as extensometers additional load cells, temperature chambers and many more accessories, for a wide range of applications.
Standards met or exceed: ASTM-E4., ISO 7500-1, EN 10002-2, JIS B7721, GB/T7721, DIN51221 and other equivalent.
United Testing Systems Canada Limited will ensure compliance with National and International Standards for all Testing Machines sold. ESA Compliance and Certification.
Power Requirements: 115/230V. 60Hz, 20A, Single Phase.
Extensometers
Specifications:
| ITEM: | Quasar TQ01.01 | | | Frame capacity: | 2,500N (562 lbf) | | | Load Cell nominal size: | 2,500N * | | | Max. accidental overload: | 4,500N / 9000N | | | Load Cell reading r | Over 3 million division | | | Stroke resolution: | 0.081 µm | | | Speed at Max. loa | 0.0001 - 1000 mm/min | | | Idle speed: | 1000 mm/min | | | Accuracy of positioning repeatability: | 0.002 mm (2 µm) | | | Accuracy of set crosshead speed: | 0.5% of setting speed | | | Total stroke: | 1,000 / 39.37 | | | Clearance between columns:(mm/in) | 101 / 3.98 | | | Testing area depth | Unlimited | | | * With optional | | | | Height: | 1,452 / 57.2 | | | Width: | 595 / 23.4 | | | Depth: | 500 / 19.7 | | | Weight: | 66 kg (145 lb) | | | Size when packed: | 700 x 800 h 1,700 | |
|
| | |
|
|
| | | |
