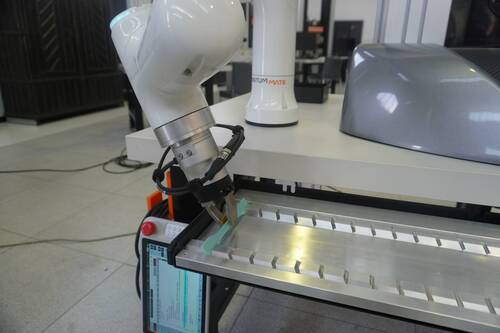

 UTSC QUANTUM Mate offers full control over processing, storage, management and data transmission to company networks or databases, along with many additional functions. Quantum Mate can also be installed on existing machines without requiring any modifications.
Programming tests and monitoring results can be controlled by our LabTest ® Software, which guarantees complete and accurate data handling in compliance with European, North American and international standards. The flexibility and compact size the robot when not in use the UTM can operate as a stand-alone machine.
Features and benefits: * Affordable price * Unattended machine operations * Collaborative security function (movement blockage upon touch) * No safety fences required * Sample traceability via QR Code reader * Measuring station - Compatible with all Quantum series Machines.
Suitable for: Tensile test on plastics ASTM-D638 type I,II,IV. - Flexure test on plastics ASTM-D790 - Tensile test on metal ASTM-E8
United Testing Systems Canada Limited will ensure compliance with National and International Standards for all Testing Machines sold. ESA Compliance and Certification.
Specifications
Quantum Mate Robotic Arm.
| ITEM: | Mate 3 | Mate 4 | | | Compatible machine: | Quasar 5-10-25 | Quasar 50-100 | | | Mate reach: | 705 mm | 919 mm | | | Matet Axis. | 6 | 6 | | | Power: | 160 w | 225 w | | | Safety features: | Over 21 Adjustable safety features | collision, detection,virtual walls,collaboration mode | | | Torque sensor resolution: | 0.1N | 0.1N | | | Repeatability: | +/-0.03 mm | +/-0.03 mm | | | ISO cleanroom class: | <70 dB(A) | <70 dB(A) | | | Weight robot + table (Kg) | 13.8 + 30 | 16.5 + 39 | | | Table Height: | 750 / 29.53 | 750 / 29.53 | | | Dimensions Width: | 1750 / 68.90 | 1750 / 68.90 | | | Depth mm/in: | 850+271/33.46+10.67 | 850+271/33.46+10.67 | |
|
| | |
|
|
| | | |
