| UTSC QUASAR Universal Testing Machine |
|
| |
|
|

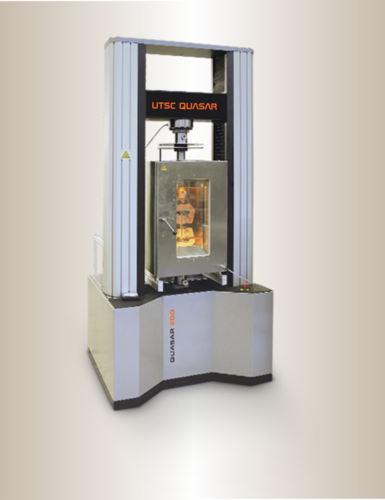

 UTSC QUASAR Electro-Mechanical Testing Machine is the product of state-of-the-art design, built to the highest quality levels and has many.advanced technical features.
Key technical advantages include extremely high resolution of load and stroke readings, as well as minimum test speed of 0.0005 mm/min for high performance and most accurate results.
The QUASAR frame can be equipped with various grips and fixtures, as well as extensometers additional load cells, temperature chambers and many more accessories, for a wide range of applications.
Standards met or exceed: ASTM-E4., ISO 7500-1, EN 10002-2, JIS B7721, GB/T7721, DIN51221 and other equivalent.
United Testing Systems Canada Limited will ensure compliance with National and International Standards for all Testing Machines sold. ESA Compliance and Certification.
Power Requirements: 115/230V. 60Hz, 20A, Single Phase.
Extensometers
Specifications:
| ITEM: | Quasar 10 | Quasar 50 | Quasar 100 | Quasar 250 | Quasar 400 | | Load Cell nominal size: (T & C) | 10,000 N | 50 kN | 100 kN | 250 kN | 400 kN | | Max. accidental overload: | 10,000 N | 50 kN | 100 kN | 250 kN | 400 kN | | Load Cell reading resolution: | 3 million division | 3 million division | 3 million division | 3 million division | 3 million division | | Crosshead resolution: | 0.043 µm with option * | 0.043 µm | 0.043 µm | 0.041 µm | 0.017 µm with option * | | Speed at Max. load: | 0.0001+500 mm/mm * | 0.0001+500 mm/mm | 0.0001+500 mm/mm | 0.0001+500 mm/mm | 0.0001+500 mm/mm | | Accuracy of positioning repeatability: | 0.002 mm (2µm) | 0.002 mm (2µm) | 0.002 mm (2µm) | 0.002 mm (2µm) | 0.002 mm (2µm) | | Accuracy of set crosshead speed: | 0.5% of setting speed | 0.5% of setting speed | 0.5% of setting speed | 0.5% of setting speed | 0.5% of setting speed | | Clearance between columns:(mm/in) | 510 / 20.08 | 510 / 21.65 | 510 / 21.65 | 510 / 21.65 | 640 25.19 | | Testing area depth: | Unlimited | Unlimited | Unlimited | Unlimited | Unlimited | | * With optional item TQ02.01 | | | | | | | Height: | 890 / 35 | 1,641 / 64.61 | 1548 / 61 | 2,198 / 86.53 | 2,852 / 1112.28 | | Width: | 890 / 35 | 890 / 35 | 890 / 35 | 1,030 / 40.55 | 1,328 / 52.28 | | Depth: | 700 / 27.6 | 700 / 27.6 | 700 / 27.6 | 827 / 32.56 | 854 / 33.62 | | Weight: | 430 lb (195 kg) | 915 lb (415kg) | 1,610 lb (730 kg)) | 1,875 lb (850 kg | 4,400 lb (2,000 kg) |
|
| | |
|
|
| | | |
