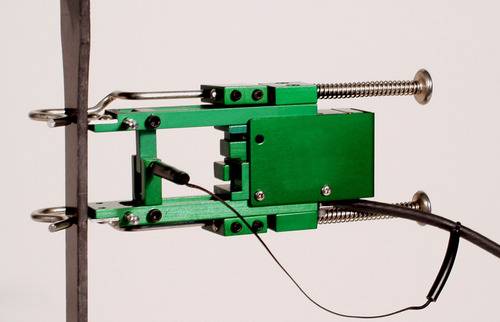

Axial Extensometer EP Series

General purpose Extensometer for axial tensile, compression and cycle testing. Gage lengths from 0.5 to 2 inches (and 10 to 50mm) and measuring ranges from 5% to 100% strain.

These Extensometers are designed for testing a wide range of materials, including metals, plastics, composites and ceramics. All will work in tension and compression. The dual flexure design makes them very rugged and insensitive to vibrations, which permits higher frequency operation.

Features: Full bridge, 350 ohm strain gaged for compatibility with nearly any test system. High and low temperature options extend operation from as low as -265ºC(-450F) 70 +175ºC (350F) Meets ASTM E-83 class B-1 and ISO 9513 class 0.5 requirements for accuracy. Measuring range: 0.075 inches or 2 mm (specify).

Specifications:
Excitation:5 to 10 VDC recommended, 12 VDC max.
Output:2 to 4MV/V,nominal, depending on model
Linearity:0.10%to0.15% of full scale.
Temperature Range:Standard -40C to +100C (-40F to 210F)
Cable:Integral,ultra-flexible cable 8ft (2.5M)
