HomeOur ProductsLoad Cells, Dynamometers, Grips, & FixturesGR5 Digital Dynamometer
GR5 Digital Dynamometer

The Digital Dynamometer is proposed as a completely autonomous instrument for weight measurements, in the field or directly bridge-cranes, cranes forklifting organs. The versatility and light weight make it easy to install in the factor, workshop sand warehouses. The GR5B is composed of a strain gauge load cell made of stainless steel of high reliability and by a latest - generation microprocessor electronic section. The weight is displayed on the backlight LCD to 5 digits. 25mm high, ad an analogue indication bar always active.in addition to the normal weighing this dynamometer can perform PEAK test and COUNTING function.

With 32 internal batteries readily available, the instrument reaches a range of about 12 months without recharging, also guaranteed by AUTO POWER OFF function, which activates when there are no changes in weight for 30 minutes.

* High Precision: <+0.-05% F.S.

* High autonomy about 1 year without recharging.

* Reliable and robust (metal housing)

* Display with BACKLIGHT.

* Function ZERO, TARE, HOLD, PEAK and COUNTING.

* Measurements of selected unity units of kg, t, N. kN. lb,

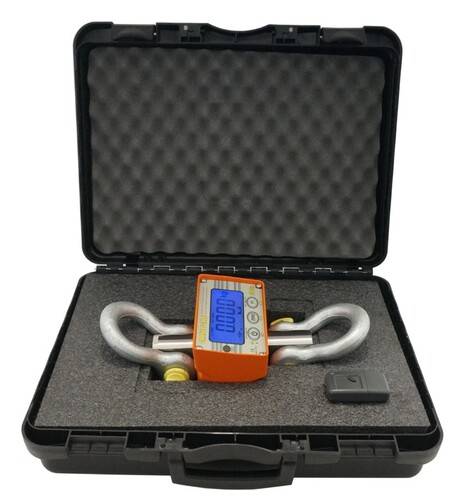

* Complete with remote control, shackles and case.

MODEL GR5B
Available configurations of type GR5B scales
SERIESCAPACITYPART NO.
EGR5B500K500 kg45-20-25
EGR5B3T3 Tons45-20-26
EGR5B9T59.5 Tons45-20-27
MODEL GR5W
Available configurations of type GR5W scales
SERIESCAPACITYPART NO.
EGR5W-500K500 kg45-20-10
EGR5W-1T1 Ton45-20-11
EGR5W-3T3 Tons45-20-12
EGR5W-6T56.5 Tons45-20-13
EGR5W-9T59.5 Tons45-20-14

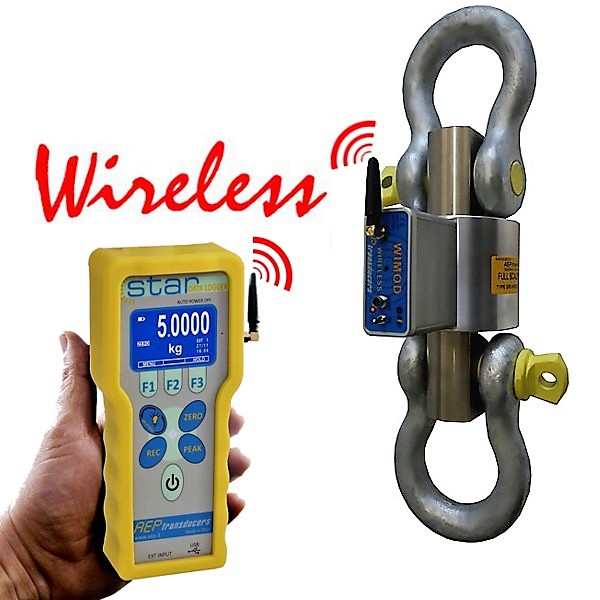

GR5W - Wireless System
