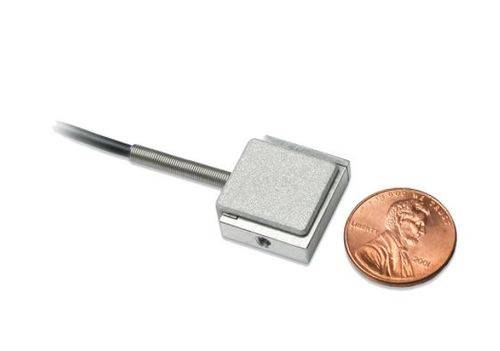

Miniature force sensors series R04

Ultra-lightweight and subcompact force sensors for measuring compression and tension loads in a limited space environment.

Plug & Test feature allows compatibility with M3i, M5i & M7i indicators.

Available capacities from 0.25 to 100 lbf (1 to 500 N).

The series R04 offers an accuracy of 0.2% full scale + indicator.

Load cell series R04
CAPACITYMODEMODEL NO.ORDER NO.
0.25 lbfTension/CompresionMR04-025M25-05-01
0.5 lbfTension/CompresionMR04-05M25-05-02
2 lbfTension/CompresionMR04-225-05-03
5 lbfTension/CompresionMR04-525-05-04
10 lbfTension/CompresionMR04-1025-05-05
20 lbfTension/CompresionMR04-2025-05-06
50 lbfTension/CompresionMR04-5025-05-07
100 lbfTension/CompresionMR04-10025-05-08
