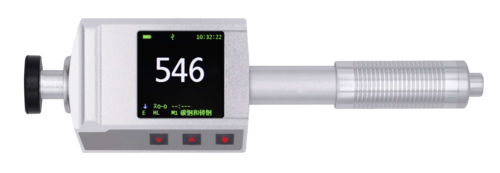

Pocket E-type Leeb Hardness Tester MH-500E

MH-500E is an advanced state-of-the-art integrated hand held sized Hardness Tester with many features.Using patented dual-coil technology which gives the MH-500E high accuracy: +/-2 HL (or 0.3% @HL800) with high contrast TFT display and durable metal housing. Equipped with impact device E (diamond ball tip) and is especially suitable for testing material after heat treatment. The movable bar-graph display can evaluate the sample upon deviation value in color for easy visual distinction.

Features:

  • Integrated design, easy operation
  • Durable metal housing
  • TFT320 colour display
  • Diamond ball tip
  • Wide operating environment: -20C to + 70C
  • High accuracy: +/-4 HL (or 0.3% @HL800)
  • Auto compensate error for different impact direction
  • Moving bar-graph display
  • Two evaluation modes: Limit / Direction
  • Two calibration modes
  • Multi-printing mode
  • For display styles
  • Sound reminder
  • Up to 10 language menu
  • Date of tome function
  • Connection to computer via USB or Bluethoot
  • USB and Bluetooth inteface for connection to wireless micro-printer
  • 3.7V Li-ion rechargeable battery
  • Statistics values calculated automatically
  • Conversion rates
  • Power on/off automatically or manually

Order No.: 76-06-03

Device conforms to ASTM A956-02, DIN 50156, ISO 16859

Standard Delivery:
MH-500E Order No.: 76-06-03
E Probe internal
Test Block D
Small support Ring
Cleaning brush
3.7 V Li-ion rechargeable Battery
Charger
USB Cable
Software
Operation Manual
Carrying case
