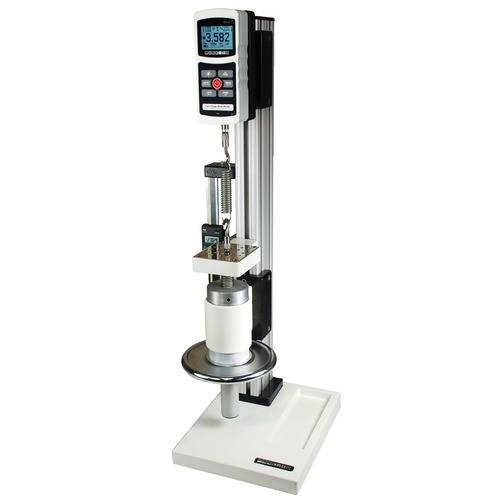

Manual Test Stands Model TSC1000 & TSC1000H

The TSC 1000 Test Stand is ruggedly built for testing up to 1,000 lbf of Compression or Tension Force. A large Hand Wheel requires little effort, even at high loads, and a precision Acme screw and nut ensures smooth operation over time.

The stand includes a loading table with threaded holes for fixture or grip mounting and a solid metal base (TSC1000) contains a storage pocket and holes for bench mounting.

Load Capacity: 1,000 lbf (5kN)

Maximum Travel: 3.5 in (89 mm)

Loading method: Hand Wheel

Travel Rate: 0.1 in (2.5 mm) per hand wheel rev.

Included Accessories: Tool Kit, medium hook, large hook, 2 in dia. compression plate, 1/2-20F mounting plate, force gauge mounting hardware.

Force Gauges & Indicators

Ordering Information:
.
TSC1000Vertical Test StandHand Wheel-operatedNo.: 25-58-00
TSC1000HHorizontal Test StandHand Wheel-operatedNo.: 25-58-01
TSC001Travel DisplayDigitalNo.: 25-58-02
TSC002Wall mounting kitHorizontalNo.: 25-58-03
TSC1004Mounting kitIndicator to test standNo.: 25-58-04
