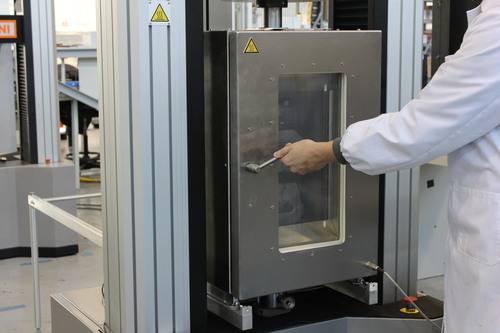

Environmental Chambers

 Temperature stability at the sensor after stabilization within +/- 0.5C                                                                                                                                                                                                                                                                                                                         Heating systems with coated incoloy heating elements to minimise radiant effects.                                                                                                                                                                                                                                                                                             Cooling by liquid nitrogen (N,) regulated by solenoid valve.                                                                                                                                                                                                                                                                                                                                 Forced air circulation via horizontal fan for optimised temperature uniformity on the specimen.                                                                                                                                                                                                                                                                           Saftey system with over-and under-temperature protection.                                                                                                                                                                                                                                                                                                                                       Automatic shutdown of heating elements and fan when door opening.                                                                                                                                                                                                                                                                                                                   Front-opening door with double locking system and multi-glazed porthole for test observation and use of extensometers.                                                                                                                                                                                                                                 Chamber supplied with wheels and tracks for easy removal and positionig.                                                                                                                                                                                                                                                                                                         Set of heat dissipation disks to limit thermal drift on load cells.



Specifications
Structure:Self-supported two-fold body framee
Heating power:2.3 kW (220V / 380 V)
Temperature range:-70C to + 300C (optional +350C / +500C )
Heat-up rate:15 C/min (20C to 8-0C without grips)
Cooling:Liquid nitrogen cooling with solenoid valve
internal dimensions:220 x 220 x 580 mm
External dimensions:360 x 480 x 766 mm
Weight:50 kg
MaterialStainless steel 1.4301,2mm thick, polished
