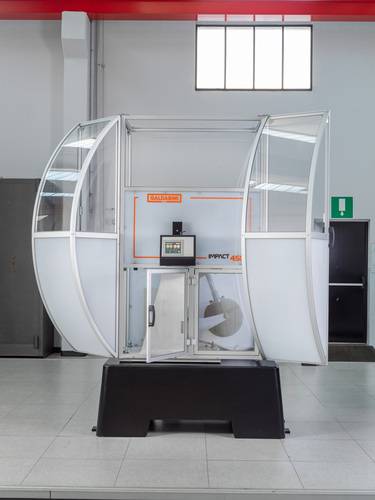

 The Pendulum Impact Testers dedicated to steel products offer high precision in determining the energy and resilience of standard metal samples.
The impact instruments are available with Charpy and or izod tooling. The device can be customized with various additional options, including the Labtest Software ®, specimen centering devices by notch or side, a chute and conveyor for broken samples.
Features and benefits:► Automatic hammer reloading after each test ► Touch screen control panel. ► Adjustable control panel position ► Height and rotation. ► Integral safety guard. ► Fast and functional. ►Good value for money.
Standards met or exceed: ASTM-E2298, ISO 14556 and other equivalent.
Power Requirements: 115/230V, 60Hz, 20A, Single Phase.
United Testing Systems Canada Limited will ensure compliance with National and International Standards for all Pendulum Impact Testers sold, ESA Compliance and Certification.
Specifications
Pendulum Impact Tester 750
| Item: | Pendulum Impact Tester 750 | | | Nominal energy: (J) | 750 | | | Drop height (m): | 1.5 | | | Impact speed (m/s) | <5.5 | | | HMI | 10 " 5.7*Color touch screen display | | | Resolution (*) | 65536 pulses for 360 < 0,01 | | | Min. certifying energy ISO 148-1 (j) | No limits | | | Min. certifying energy ASTM-E23 | 10 | | | Hammer reloading: | Automatic after every test | | | Other Hammer Charpy | 450 J | Opt. | | Other Hammer Charpy | 600 J | Opt. | | Other Hammer Charpy | 750 J | Standard | | Hammer Charpy | Izod 300J | Opt. | | Allowed Magnetic Field (yT) | <500 | | | Ambient temperature: | +10C / 40C | | | Weight:(kg) | Frame | 1600 | | Weight:(kg) | Safety Shield | 120 | | Weight:(kg) | Concrete base (Opt.) | >2050 |
Specifications:
Pendulum Impact Tester 450
| Item: | Pendulum Impact Tester 450 | | | Nominal energy | 450 | | | Drop height (m): | 1.34 | | | Impact speed (m/s) | <5.2 | | | HMI | 10 " 5.7*Color touch screen display | | | Resolution (*) | 65536 pulses for 360 < 0,01 | | | Min. certifying energy ISO 148-1 (j) | No limits | | | Min. certifying energy ASTM-E23 | 10 | | | Hammer reloading: | Automatic after every test | | | Other Hammer Charpy | 150 J | Opt. | | Other Hammer Charpy | 300 J | Opt. | | Other Hammer Charpy | 450 J | Standard | | Hammer Charpy | Izod 300J | Opt. | | Allowed Magnetic Field (yT) | <500 | | | Ambient temperature: | +10C / 40C | | | Weight:(kg) | Frame | 1070 | | Weight:(kg) | Safety Shield | 120 | | Weight:(kg) | Concrete base (Opt.) | >1700 |
Specifications:
Pendulum Impact Tester 300
| Item: | Pendulum Impact Tester 300 | | | Nominal energy | 300 | | | Drop height (m): | 1.34 | | | Impact speed (m/s) | <5.2 | | | HMI | 10 " 5.7*Color touch screen display | | | Resolution (*) | 65536 pulses for 360 < 0,01 | | | Min. certifying energy ISO 148-1 (j) | No limits | | | Min. certifying energy ASTM-E23 | 10 | | | Hammer reloading: | Automatic after every test | | | Other Hammer Charpy | 150 J | Opt. | | Other Hammer Charpy | 300 J | Standard | | Other Hammer Charpy | 450 | Opt. | | Hammer Charpy | Izod 300J | Opt. | | Allowed Magnetic Field (yT) | <500 | | | Ambient temperature: | +10C / 40C | | | Weight:(kg) | Frame | 1060 | | Weight:(kg) | Safety Shield | 120 | | Weight:(kg) | Concrete base (Opt.) | >1700 |
|
| | |
|
|
| | | |
