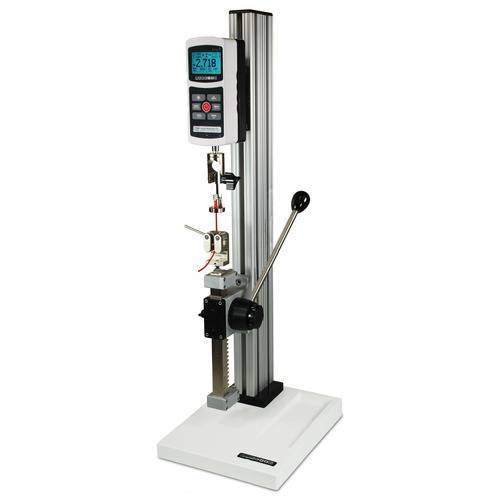

Manual Test Stands TSA750 & TSA750H

The lever operated TSA750 is ideal for quick-action testing of up to 750 lbf (3.75 kN) of compression force. Made of rugged components, this test stand is durable enough for the factory floor, yet precise enough for laboratory environments. The loading lever can be positioned in 30 increments and the adjustable precision ground rack and pinion mechanism assures smooth, precise motion through 6 in of travel.

The test stand includes adjustable travel stops and a frictional low force brake.

Load Capacity: 750 lbf (3.75 kN)

Maximum Travel: With travel stops: 2.75 in (69.9mm) Without travel stops: 6 in (152.4mm)

Loading method: Rack and pinion, lever can be positioned in 30 deg. increments

Included accessories: Tool kit, medium hook, large hook, compression plate, force gauge mounting hardware.

Test Stand available Vertical and Horizontal.

 Compression Spring test.

Force Gauges & Indicators

Ordering Information:
TSA750Vertical Test StandLever-operatedNo.: 25-56-00
TSA750HHorizontal Test StandLever-operatedNo.: 25-56-01
TSA001Digital travel display6 in/ 150mmNo.: 25-56-02
TSA002Wall mounting kitHorizontalNo.: 25-56-03
AC1004Mounting kitIndicatorNo.: 25-56-04
TSA750Table AssemblyNo.: 25-56-05
