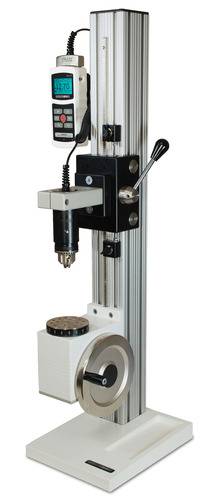

Manual Torque Test Stands Model TST & TSTH

The TST is a Manual Torque Test Stand, and is ideal for a wide variety of torque testing applications up to 100 lbfin (11.3) Nm of torque, including closure torque testing, fastener torque testing, and more. Smooth hand wheel operation ensures ease of use and a lever-operated slider with travel stops makes engaging and disengaging samples quick and efficient.

The Test Stand includes a torque loading table with tapped holes for grip and custom fixture mounting and an angle indicator with 2° in resolution and unlimited angular travel. Modular mechanical design allows the stand to be configured for a variety of applications.

Torque capacity: 100 lbfin (11.3 Nm)

Maximum angular travel: No limit

Angular rate: 12°  per hand wheel revolution

Angle indicator resolution: 2°

Maximum slider travel: 15.5 in (394 mm)

Slider travel rate: 1.047 in (26.6 mm) / lever revolution

Included accessories: Tool kit

Torque Sensors & Indicators



Ordering Information:
TSTTorque Test Stand verticalLever-operatedNo.: 25-60-00
TSTHTorque Test Stand horizontalLever-operatedNo.: 25-60-01
TST001Angle displayDigital 110VNo.: 25-60-02
Mounting KitHorizontalSeries TSF & TSTNo.: 25-60-03
