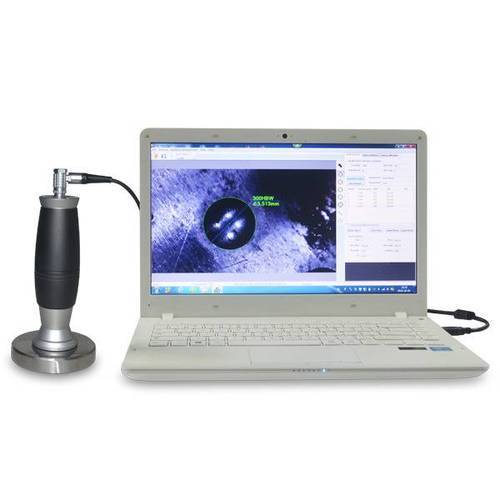

The BMS-i100 fits most Brinell Hardness Testers. This economical Measurement System is appropriate for testing the hardness of coarse grained metals, cast iron, non-ferrous metals and their alloys, aluminum, copper and many others.System offers compact simple operation with superior quality USB camera with a streamlined ergonomic design.

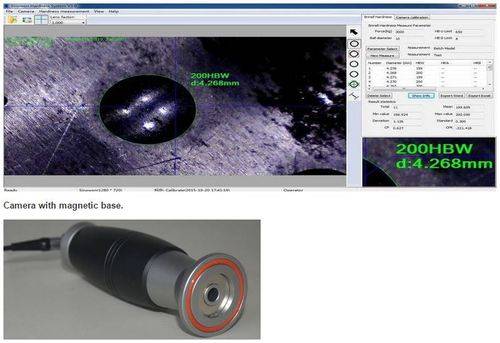

The Auto-measuring option shows and records Indenter diameter and Brinell Hardness numbers. Diameter accuracy: 0.001mm according to ASTM-E10, ISO-6506 and different other standards. Selectable upper and lower resistance limits; Selectable Hardness conversion as indicated by ASTM E-140, DIN 50150; Selectable auto-save picture and corresponding measurement result files, to create reports; Selectable auto-save date, hardness parameters, hardness values and picture storage location add to the efficiency of the system.

Auto-save information and Image Files can be stored, altered, or produce reports. Real Statistics, measuring information, show Min, Max, Average, deviation are recorded, CP, CK and so on. An exceptional ring-molded light source and dynamic focal point, permits clear pictures and contrast.

Order No.: 95-70-52  10.0 mm Brinell Measuring System.

Order No.: 95-70-50  2.5/5.0 mm Brinell Measuring System.

Measurement program :
