HomeOur ProductsIndicators Force / TorqueIndicator ZM301

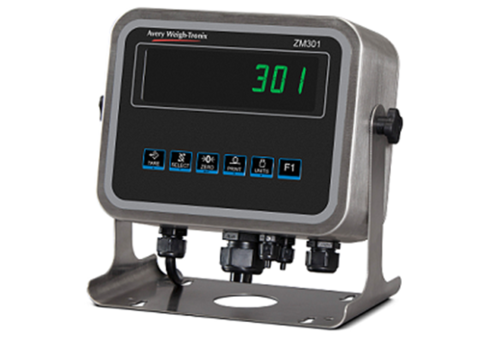

Indicator ZM301

Hi-vis display to improve productivity - The ZM301 indicator features the latest technological advancement for highly visible displays. The high contrast, nine segment IBN display technology provides excellent color contrast and enhanced viewing angles, reducing operator error and improving productivity.

Adaptable for a variety of industrial environments - The ZM301 captures values at an astounding rate of 80 times per second and is available in a variety of enclosures to suit your operating environment:

  • Protective aluminum enclosure for office environments
  • A  robust IP69K certified stainless steel enclosure for harsh indoor or outdoor use, or a stainless steel panel mount design for control room applications.

Part No: 50-00-06









SPECIFICATIONS
General
Operating ApplicationsGeneral weighing, accumulation, check weighing, counting, peak measurement, batching and remote display
Unit of MeasureSix, configurable (Pounds, Kilograms, Ounce, Gram, Pound/Ounce, Custom)
Capacity Selections9,999,999 with decimal located zero to five places
Incremental SelectionsMultiples and sub-multiples of 1, 2, 5
Programmable SelectionsZero range, motion detection, automatic zero tracking, five point linearization
Time and DateBattery backed up time/date/year (12 hr or 24 hour format)
CalibrationTwo to five points stored
Analog to Digital Measurement Rate80 Hz
Internal Resolution53,687,100 counts per mV/V per second
Digital FilteringHarmonizer filtering with adaptable constant and threshold
Self DiagnosticsDisplay, keys, inputs, outputs, serial port

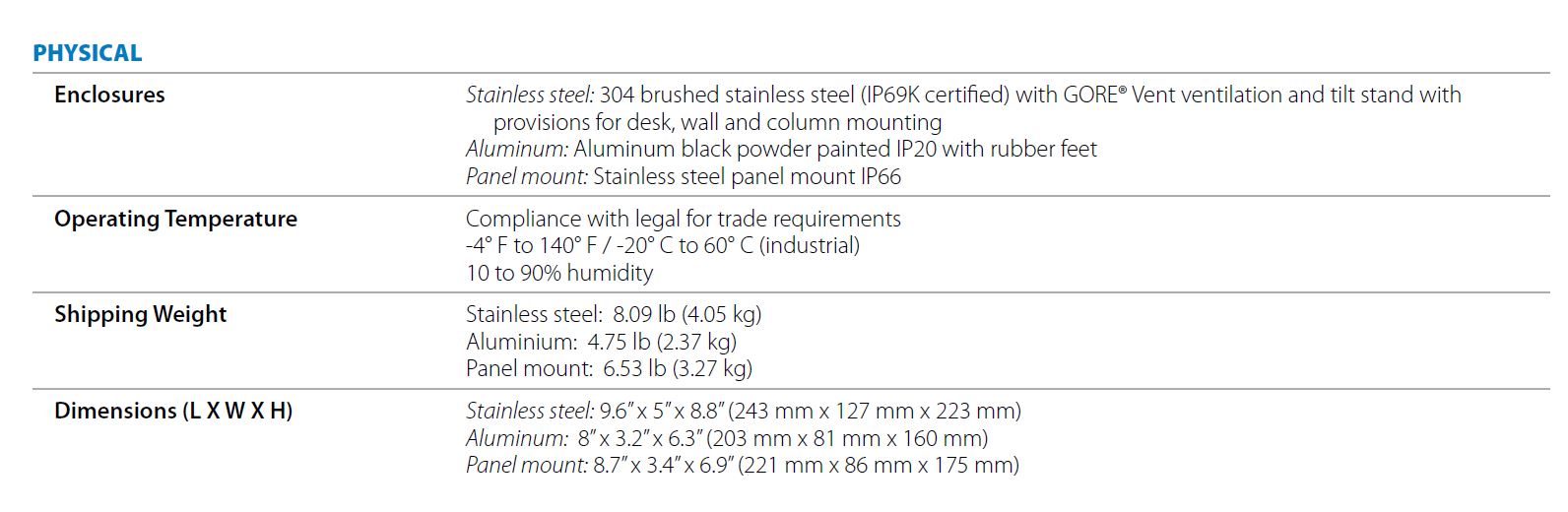

Physical Parameters

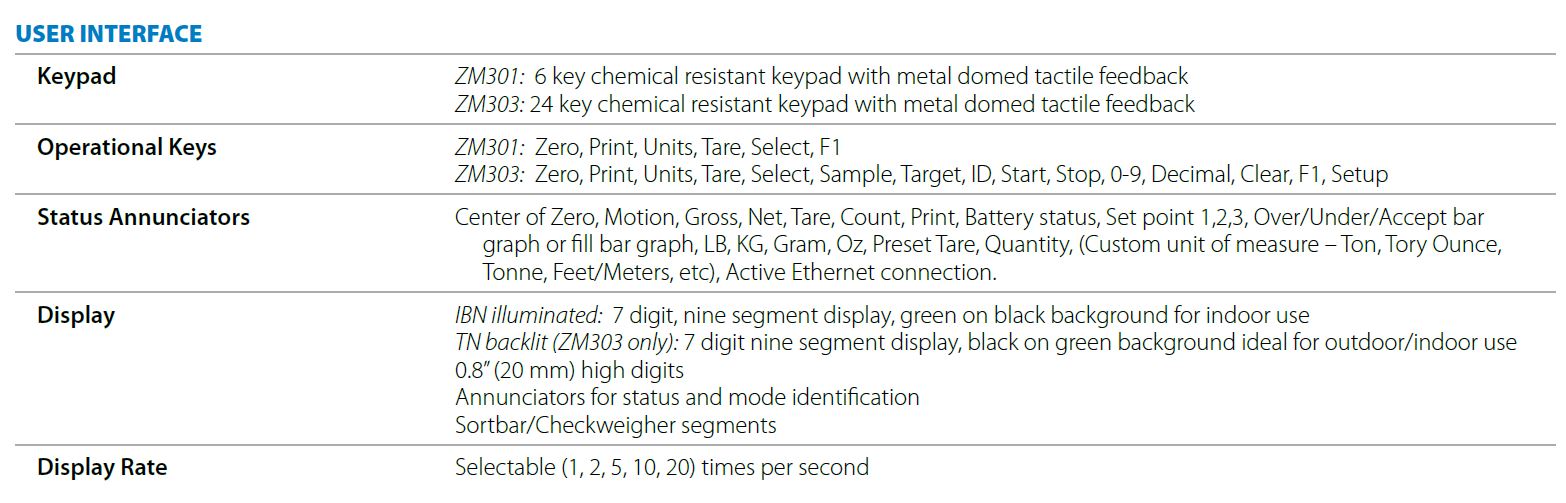

User Interface Parameters
