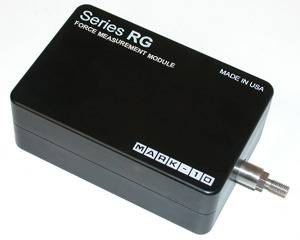

Force Measurement Modules Series RG

Series RG Smart Load Cells is a plug-and-play force measurement building block designed for integration within assembly systems, weighing systems and other process automation and testing automation applications. Accuracy ± 0.5% of full scale.

  • Measures tension and compression forces
  • Dedicated force limit outputs for direct hardware control (relays, etc)
  • Direct interface for PLCs
  • RS-232 and Mitutoyo outputs
  • GCL-Gauge Control Language for full computer control
  • Averaging mode for readings over time
  • External trigger for contact or switch testing data capture
  • General purpose I/O for external device control
  • Programmable digital filters
  • Selectable units of measurement
  • Programmable default configuration
  • Peak memory for tensile and compression forces
  • Power via 9 - 12 VDC
  • Same housing size for all capacities
  • Safe overload: 150% of capacity
  • Weight: 0.55 lbs (0.25 kg)



Modules Series RG
Model: Capacity:Order No.:
RG22 lbf (10N)25-16-01
RG55 lbf (25N)25-16-02
RG1010 lbf (50N)25-16-03
RG2020 lbf (100N)25-16-04
RG5050 lbf (250N)25-16-05
RG100100 lbf (500N)25-16-06
RG200200 lbf (1000N)25-16-07
