Test Stands

United Testing Systems Canada Limited offers a wide selection of customisable Test Stands to meet your testing requirements. Available capacities: 10 lbf, 20 lbf, 30 lbf, 50 lbf, 100 lbf, 300 lbf, 500 lbf, 750 lbf, 1,000 lbf and 1,500 lbf.

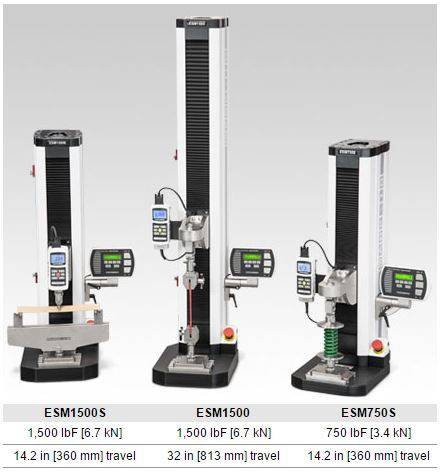

The ESM1500 is a highly configurable single-column force tester for tension and compression measurement applications up to 1,500lbf (6.7kN).Suitable for laboratory and production environments. The ESM1500 may be used with an indicator-load cell combination or with a force gauge. With generous travel, clearance, and depth dimensions, a wide range of tests can be performed, including break testing, cycling, limit testing to a load of distance, load holding, elongation testing, tensile testing, compression testing, and more. The ESM1500 has a unique, modular function platform. Individual functions, such as travel measurement, cycling, load holding, etc. may be purchased either upfront or enabled in the field trough an activation code. This a-la-carte platform allows for custom configuration as appropriate for the application and budget.

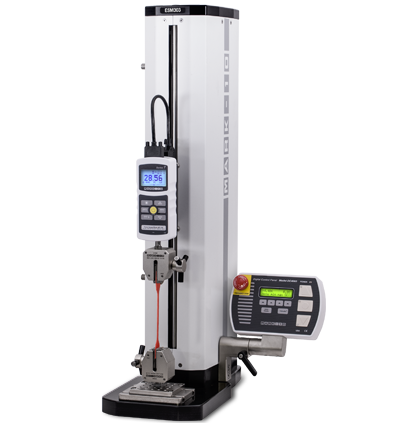

The ESM 303 Motorized Force Measurement Test Stands are a versatile and precise testing solution for most tension and compression testing applications up to 300 lbf. (1.5 kN) for laboratory and production environments. The Test Stands can perform a wide variety of tests, including break testing, cycling, limit testing to a load distance and more. Speed is adjustable in up and down directions and a remote control unit provides added safety during testing. Other features include a manual fine adjustment knob and a stepper motor that prevents speed variation with load, making testing precise and repeatable. Use this Test Stand with any Mark-10 Force Gauge and grips to create a complete testing solution.

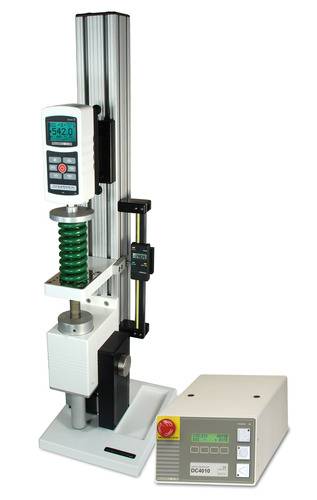

The TSFM-DC is a Motorized Force Test Stand designed for tension and compression testing of springs, packaging, metals, fabrics and other items requiring up to 500 lbf (2,200 N) of force. Generous clearance and throat depth accommodate a broad range of sample shapes and sizes. The durable and rigid column minimizes bend, making it particularly well suited for spring testing. Use this Test Stand with any Mark-10 Force Gauge and grips to create your complete testing solution.

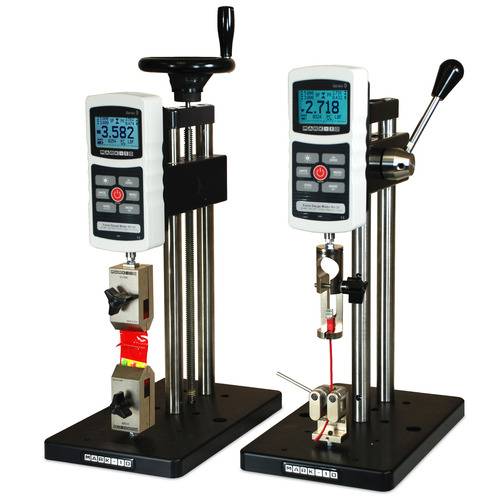

The ES05 to ES30 Manual Force Measurement Test Stands are Ideal for Low Force applications they are Versatile and Economical solution for most Compression and Tensile Testing Applications. It can accept a wide variety of sample shapes and sizes and can be configured in many positions due to modular design. Precision hand wheel operation enables the user to easily and accurately test up to 200 lbf 1000 N of force. Use with any Mark-10 Force Gauge and grips to create a complete testing solution.

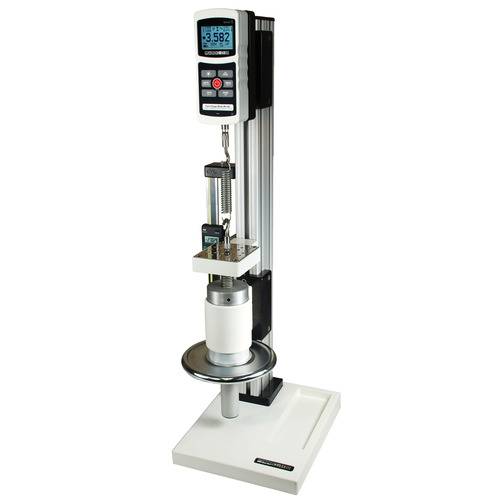

The TSC 1000 Test Stand is ruggedly built for testing up to 1,000 lbf of Compression or Tension Force. A large Hand Wheel requires little effort, even at high loads, and a precision Acme screw and nut ensures smooth operation over time.

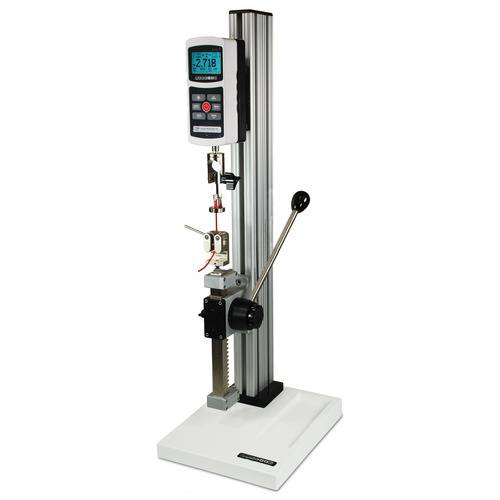

The lever operated TSA750 is ideal for quick-action testing of up to 750 lbf (3.75 kN) of compression force. Made of rugged components, this test stand is durable enough for the factory floor, yet precise enough for laboratory environments. The loading lever can be positioned in 30 increments and the adjustable precision ground rack and pinion mechanism assures smooth, precise motion through 6 in of travel.

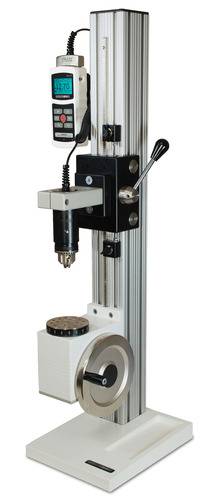

The TST is a Manual Torque Test Stand, and is ideal for a wide variety of torque testing applications up to 100 lbfin (11.3) Nm of torque, including closure torque testing, fastener torque testing, and more. Smooth hand wheel operation ensures ease of use and a lever-operated slider with travel stops makes engaging and disengaging samples quick and efficient.

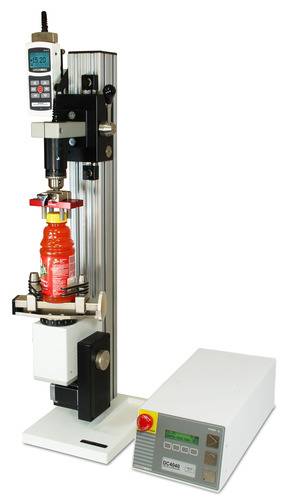

The TSTM-DC Advanced Motorized Torque Test Stand, offers all mechanical specifications of the TSTM motorized test  stand, including standard 100 lbfin (11.5 Nm) torque capacity, versatile modular design, quick engagement and disengagement of samples, fixture mounting plate, stepper motor design, that prevents speed variation with load, and more. A 200 lbfin (22 Nm) capacity upgrade is available as an option. The TSTM-DC offers expanding capabilities, including full PC control, programmable angle limits, programmable cycling, auto return, password protection, and other features.
